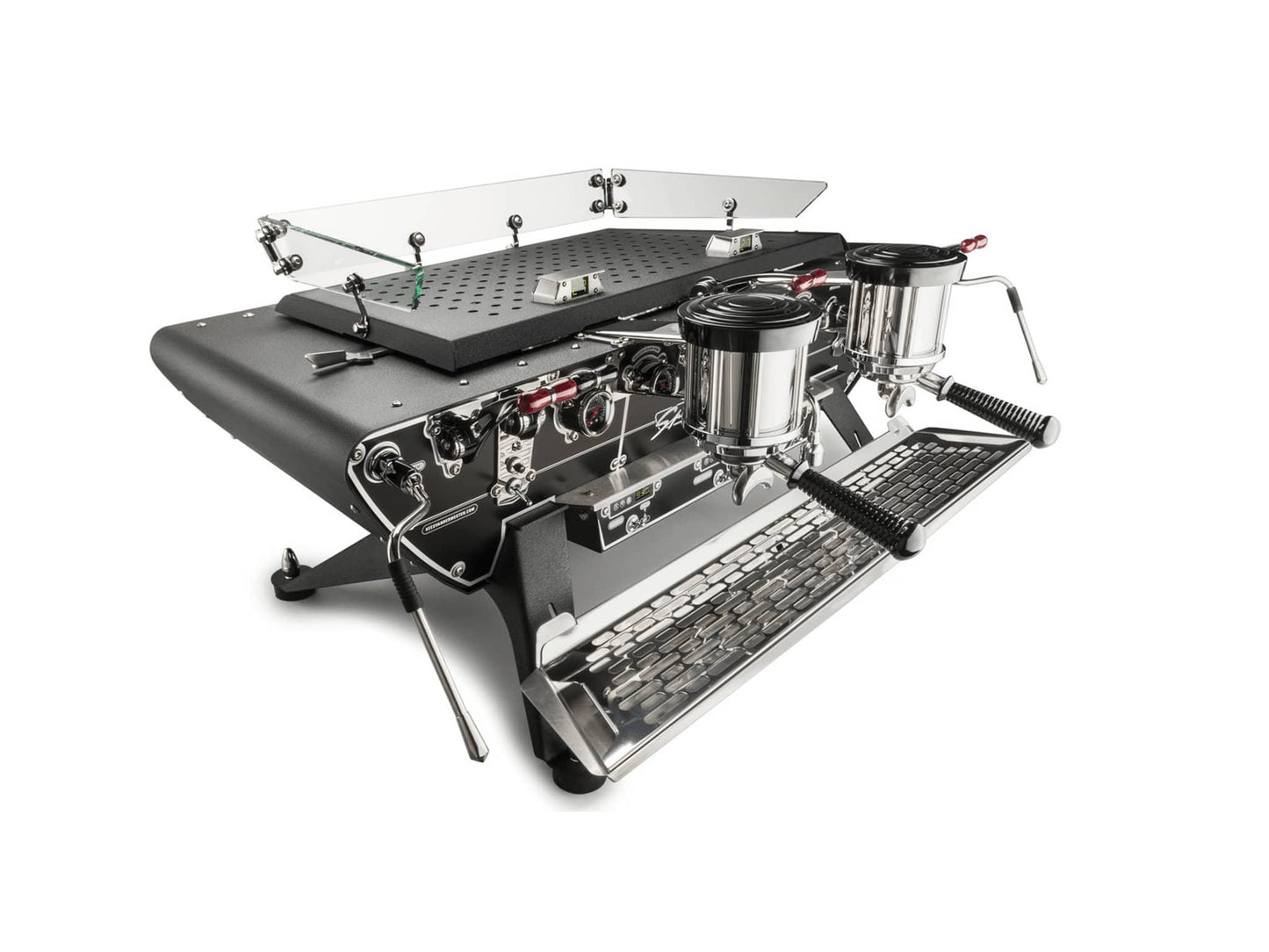

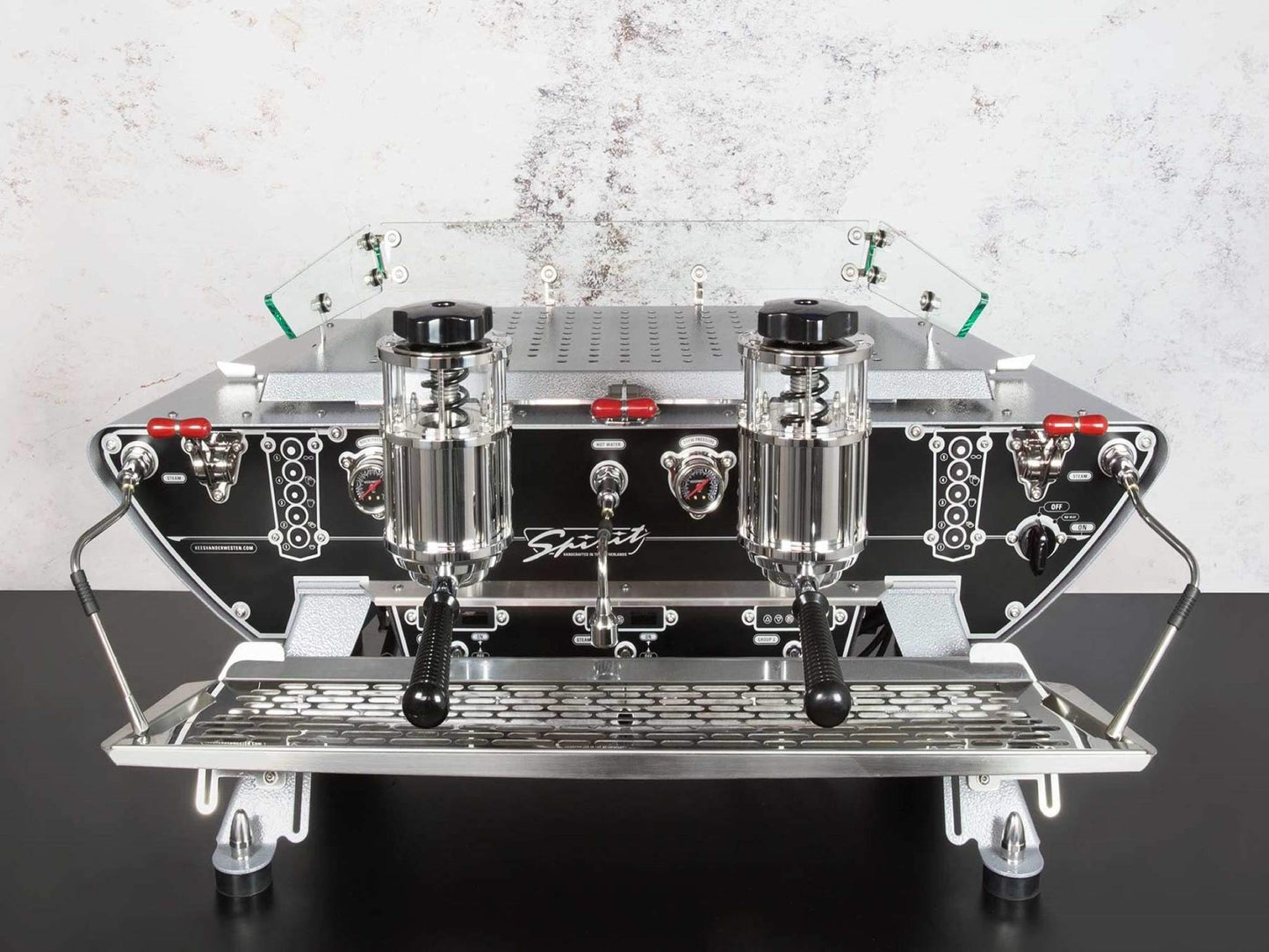

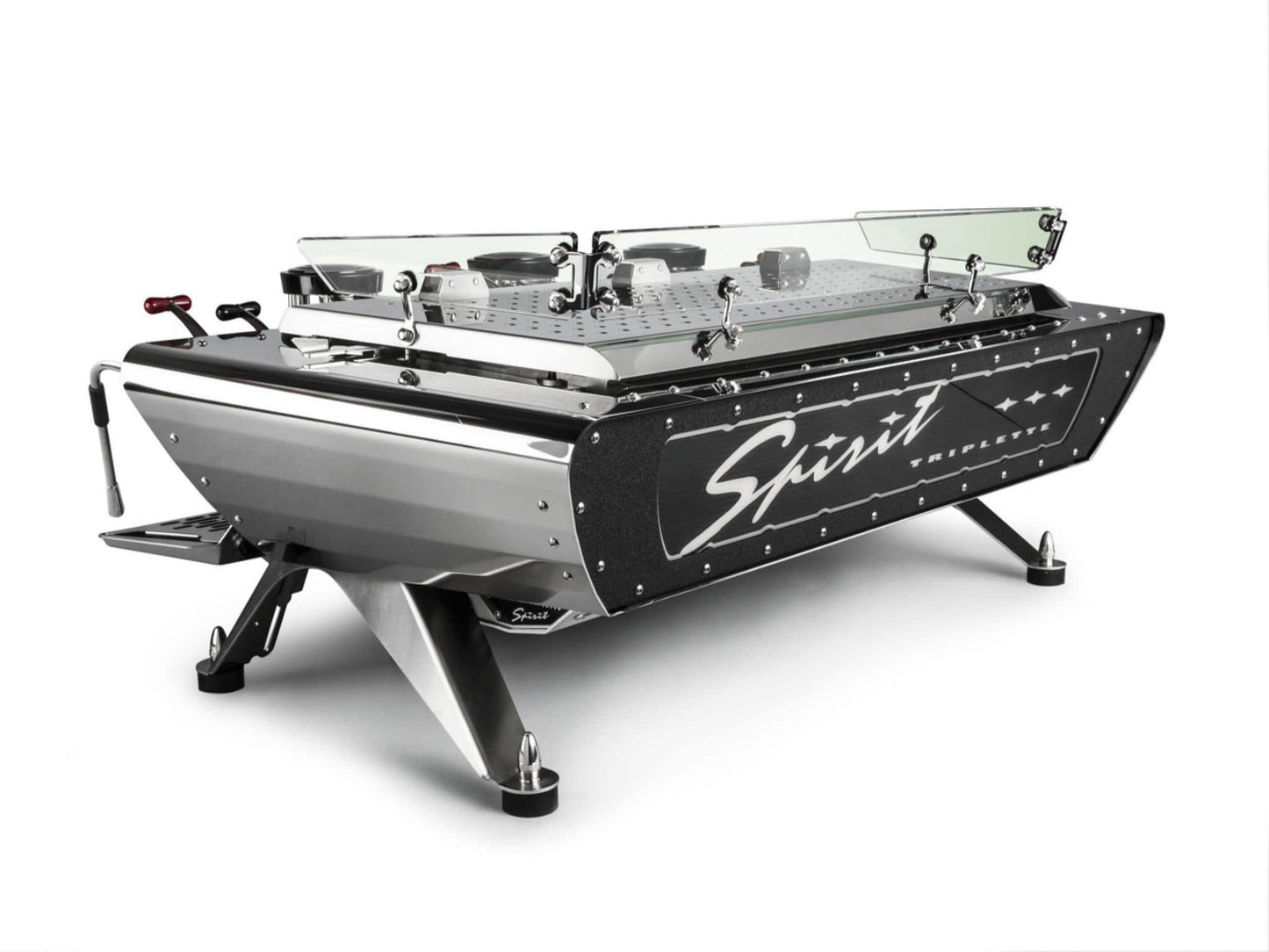

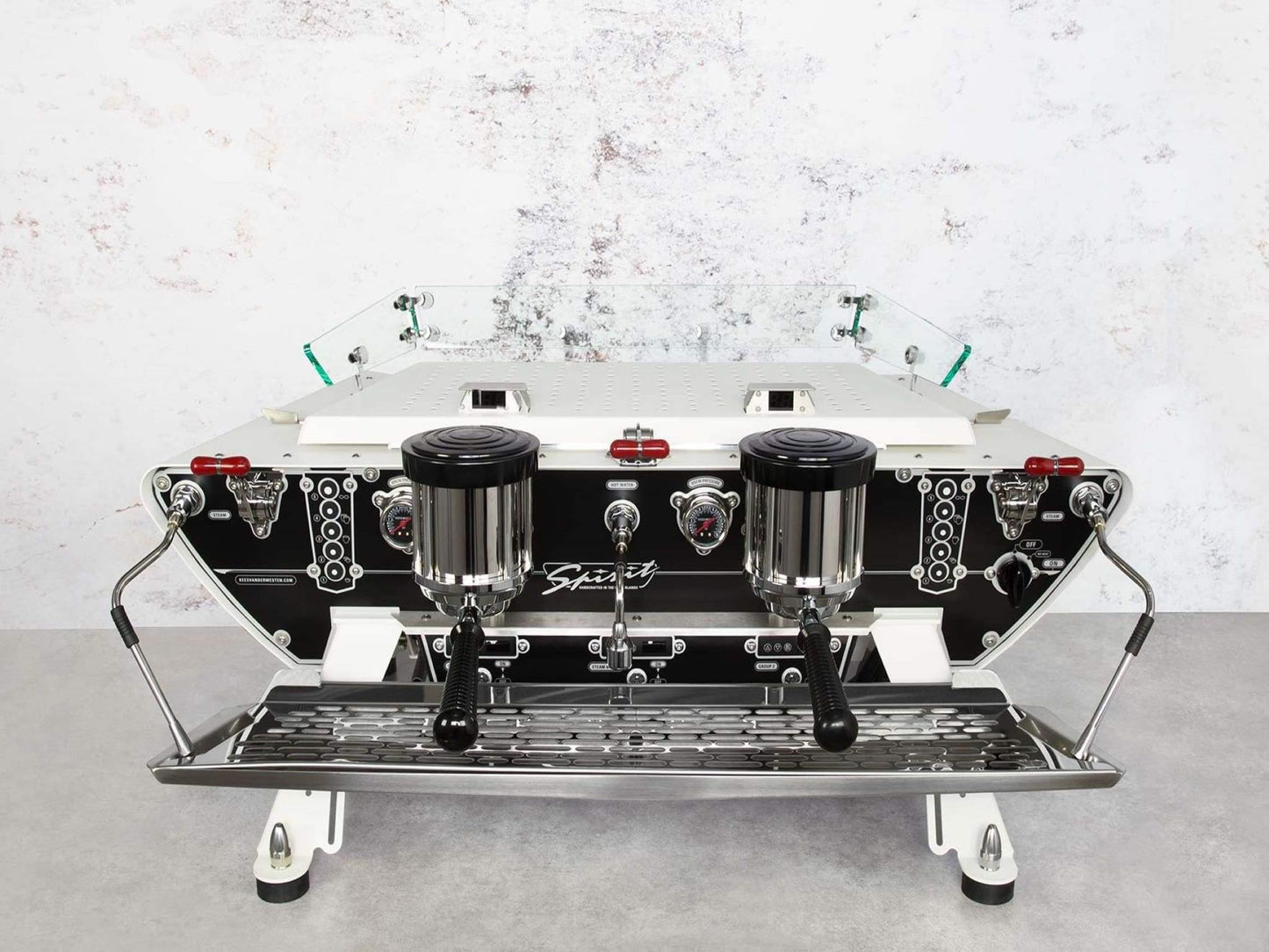

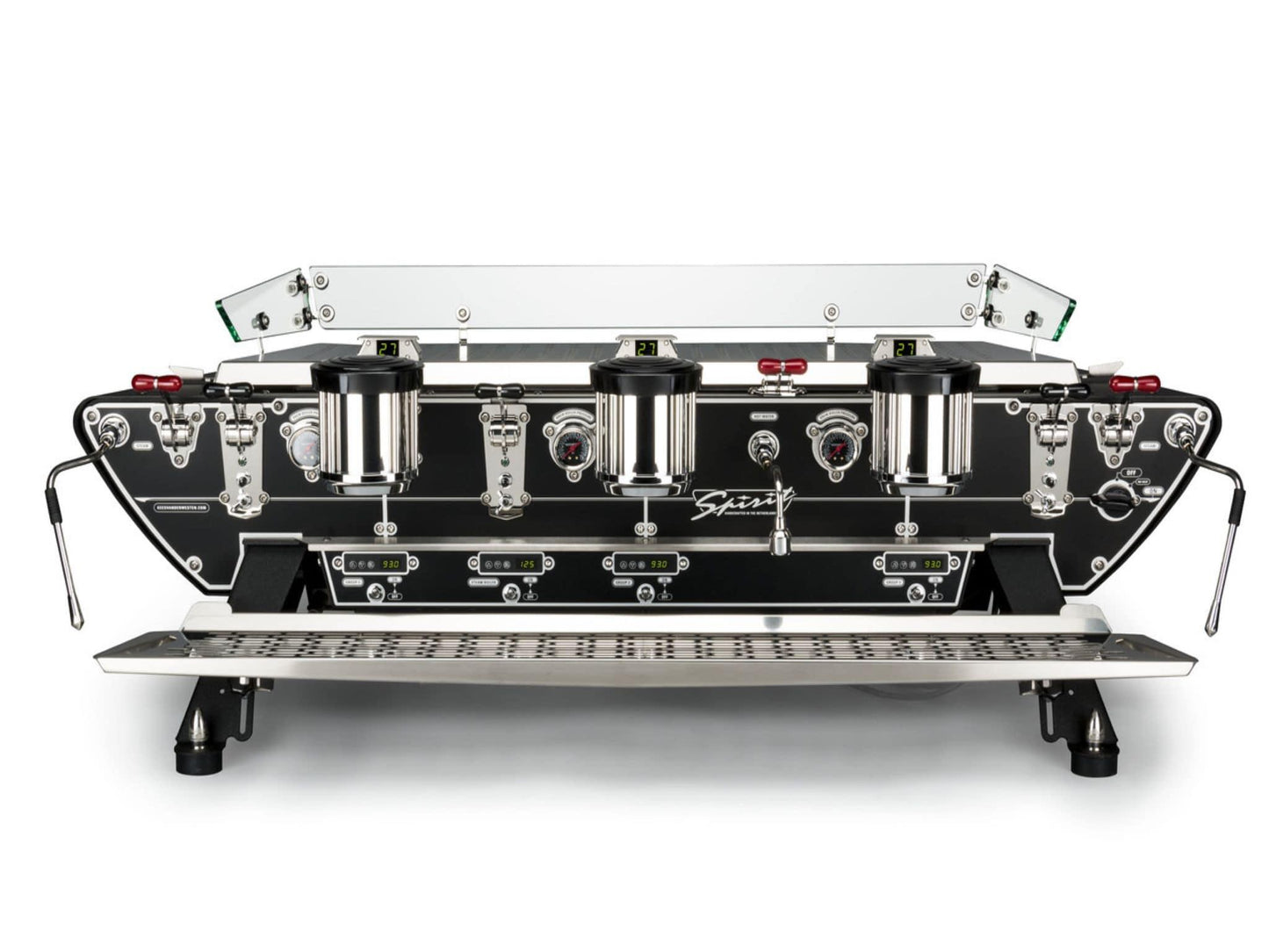

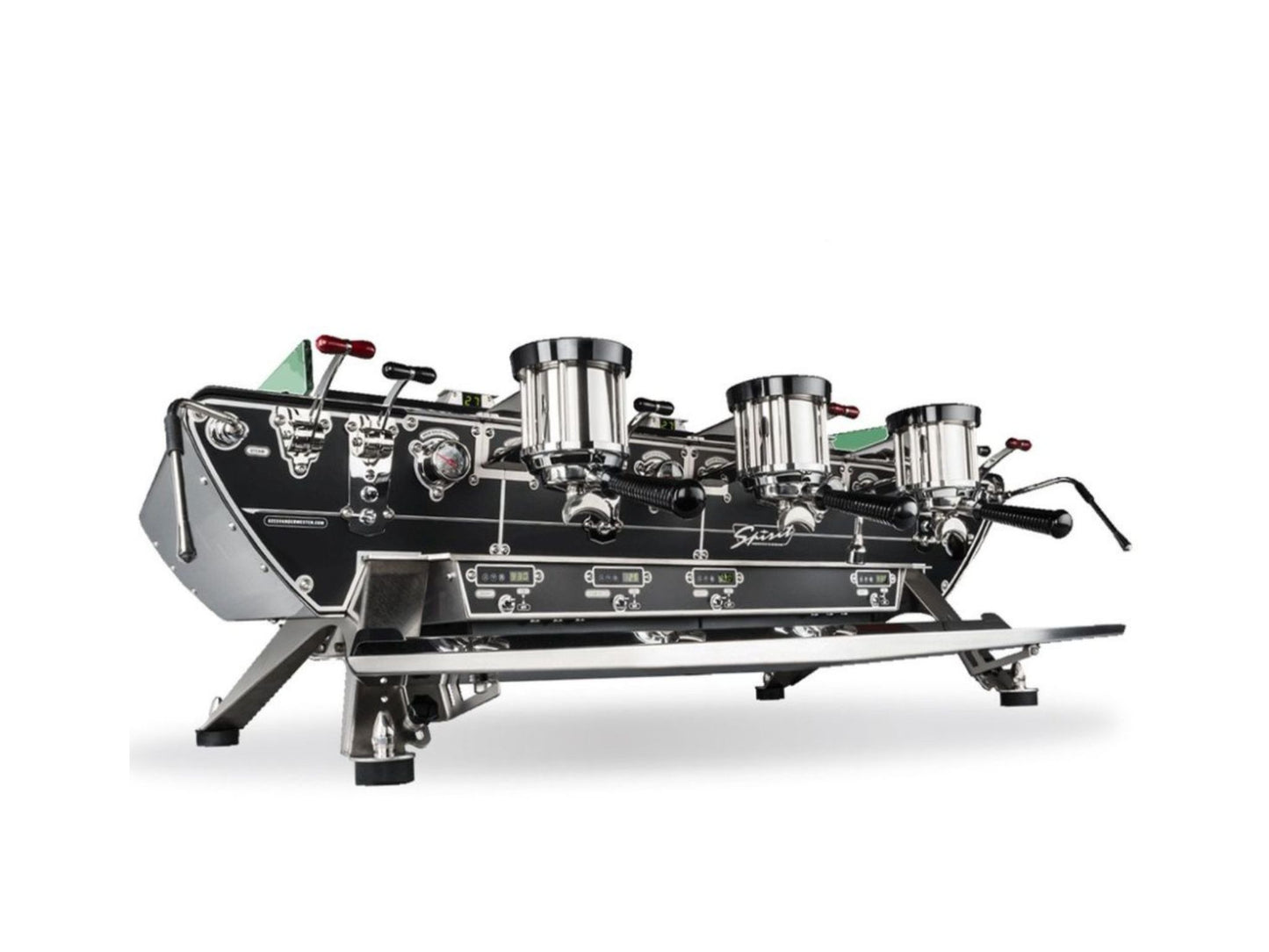

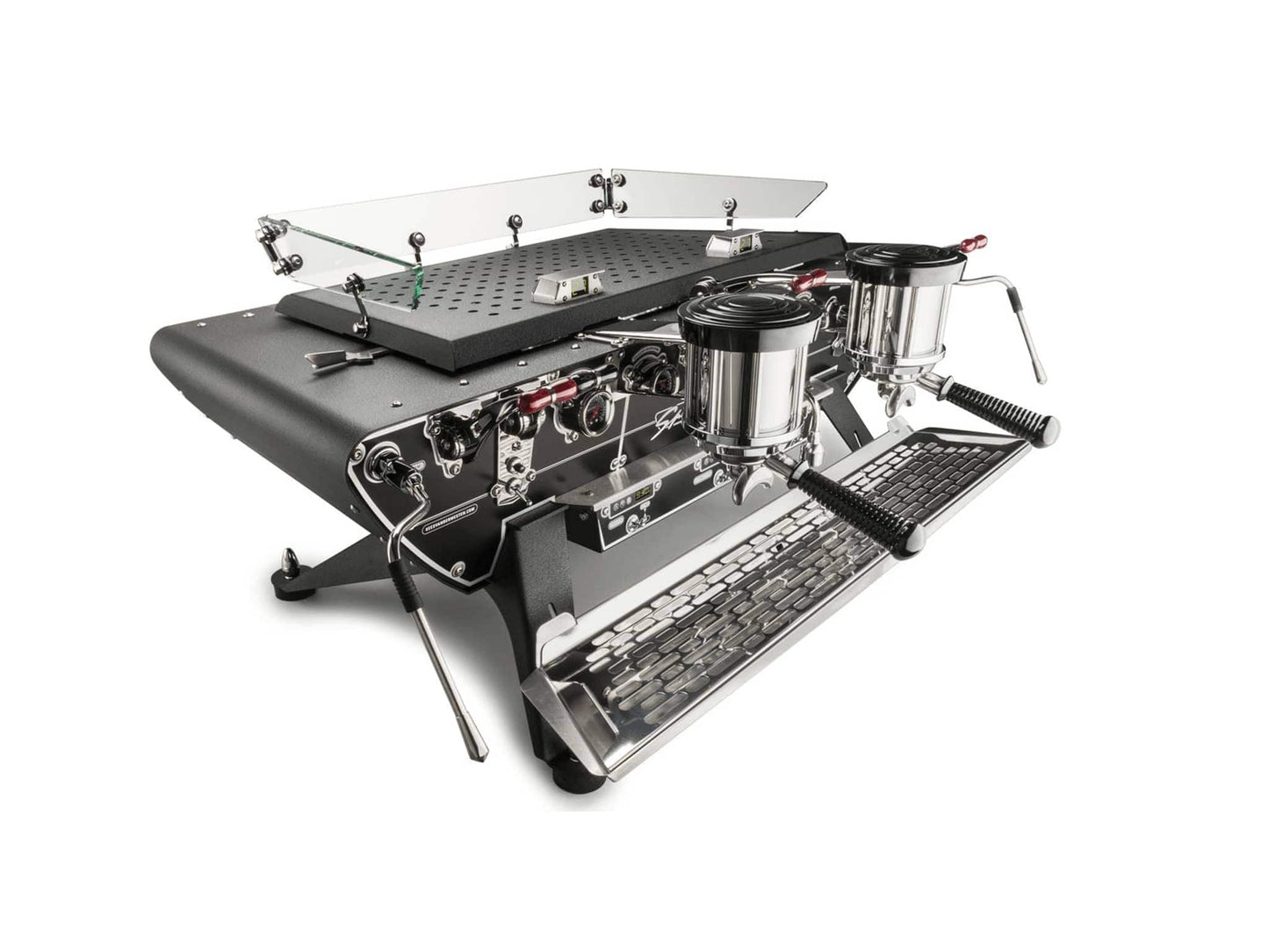

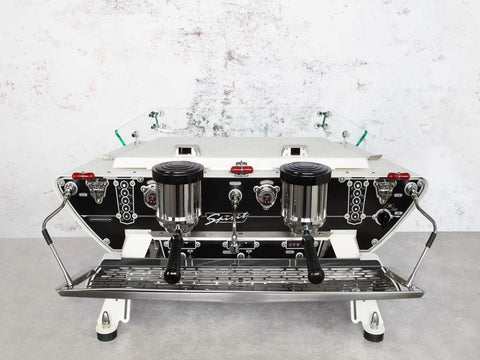

Kees Van Der Westen Spirit

Spirit

Size
Type

The Kees van Der Westen Spirit is a state of the art multi-boiler espresso machine. Developed with ergonomics and demands of very high output espresso bars in mind.

The Spirit represents the apex of Kees' hand crafted line of espresso machines. The machine is truly stunning, making it an exceptional showpiece for the bar. Featuring two external pumps, multiple steam boilers with over-rated heating elements, and precise temperature control of each boiler, it's designed to exceed the requirements of even the most exacting coffee programs. With all that power, the built-in eco-mode ensures power efficiency during low-demand periods.


Includes Fast Shipping, a 12-month parts warranty, and Lifetime Pro Support.

  • Heat exchange + Multi-boiler Technology - The Spirit has one large steam boiler and exceptionally large independent brew boilers (2.1 ltr) for each group head. Brew boilers are fed by water preheated via heat exchanger for exceptional temperature stability.
  • Independent PID Control - Each boiler is algorithmically controlled and programmable via digital display.
  • Saturated Group Heads - Ensures consistent temperature from boiler to coffee puck.
  • Equipped With 2 External Pumps - One feeds steam boiler and one feeds the brew boilers. This ensures group head brew pressure isn't impacted by refilling the steam boiler.
  • Shot Timers in Full View Above Each Group - Makes perfect shot times easy to track.
  • Pre-Infusion Pressure Profiling - Pressure slowly ramps up to 9 bars, minimizing channeling and producing more consistent extraction.
  • Illuminated Rear Panel - Showcase the Spirit or customize with your own cafe logo.
  • Intuitive Operation by Levers - Two programmable shot volumes for simple usage.
  • Energy Saving Eco Mode - Temperature can be programmed to drop during off-peak hours to save energy; each boiler can be switched on and off separately.
  • Auto-Back-Flush Program - Groups pressurize and discharge multiple times for an internal wash-out.
  • Self-Bleeding Groups - Shutdown cleaning is quick and easy.
  • Heat Neutral Polymer Dispersion Block - Outside parts stay cool and easy to clean.
  • Integrated Safety Features - Heavily protected heating element, additional temperature probe and 120s time-out of solenoid to protect staff and customers from accidents.
  • Elevated Position of Body - Easy cleaning of bar surface, yet low enough to allow comfortable barista-customer contact.
View full details

RESOURCES

Instruction Manual

Videos

Instruction videos

Instruction Manual

Technical Documents

SPECIFICATIONS

Manufacturer
Kees Van Der Westen
Boiler Type
Multi-Boiler
Number of group heads
Duette
Tripette
Steam Boiler Capacity
10.5 L
19.5 L
Length (in)
45.3"
49.6"
Depth (in)
28"
28"
Height (in)
17.7"
17.7"
Voltage
220-240V
220-240V
Amperage
32-33 A
41-45 A
Wattage
7300-7600 W
9400-10100 W
Weight
198.5 lbs
275.6 lbs
Certificate
CE

Manufacturer

Kees van der Westen commercial espresso models are praised for being built to perfection and assembled to be working pieces of art.

Warranty & Returns

Standard warranty covers the replacement of defective parts for up to 12 months after purchase date.

30-Day Returns - Standard returns Returns are accepted if initiated by the buyer within 30 days of receipt. Returned equipment must be in the same condition as received per our inspection or else dockages may be incurred. A 20% restocking fee applies to espresso machines, brew equipment and grinders; this covers subsequent physical and mechanical inspection, additional setup/testing, and restocking post receipt. Buyer is responsible for return shipping to our facility (located in Austin, Texas), along with any associated costs that may be incurred. Read our full returns policy

water Quality Requirements

Water quality testing for your espresso machine is essential for optimal flavor and equipment longevity. Good water enhances the taste of your coffee, while impurities can cause scale buildup and damage to the machine. Damage caused by inadequately treated water will void the machine and manufacturer’s warranty. Chloride requirements only apply to machines with steel boilers.

Target

Upper Limit

Total Chlorine
0 mg/L
0.5 mg/L
Calcium Hardness
4 grains/gallon or 68 mg/L
5 grains/gallon (85 mg/L)
Total Alkalinity
40 mg/L
pH
7.0
7.5
Chloride
ppm
30
